PRECISION LAYOUT SOLUTIONS
Robotic Layout Services, Powered by the HP SitePrint Robot
Precision construction layout NZ wide, printing unmatched accuracy using robotic layout machine technology.
Precision Robotic Site Layout for Faster, More Accurate Builds
PLS brings our robotic layout machine to building sites across Canterbury, the South Island and New Zealand, delivering millimetre-accurate results every time.

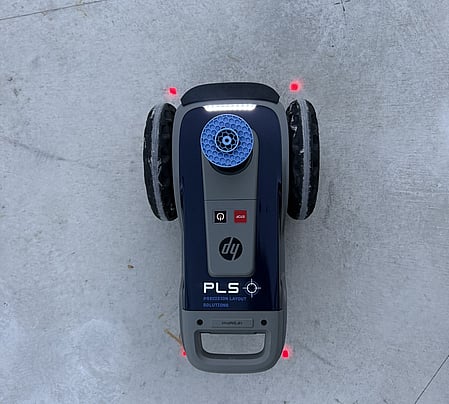

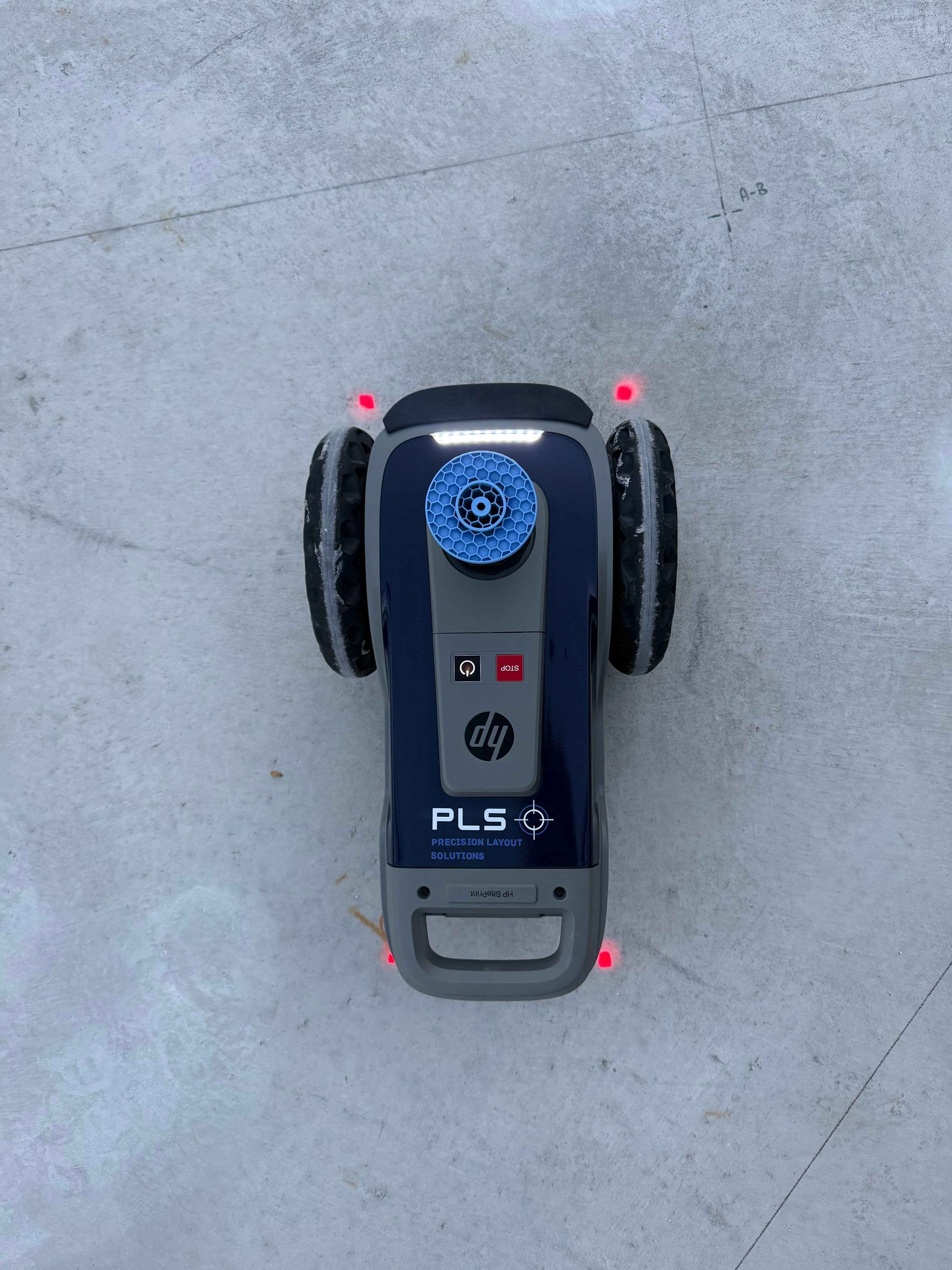

Using the HP SitePrint robot, we turn digital construction plans into precise layouts directly on site, helping reduce errors, speed up timelines and take the guesswork out of set-outs. With a builder’s understanding of what happens on site, we can combine multiple construction plans into one coordinated layout, helping identify discrepancies before work begins and giving builders and trades the information they need exactly where they need it.
Millimetre-Accurate Layouts
Get precise, repeatable markings straight from your CAD files, with accuracy to within ±1 mm, reducing errors and eliminating guesswork on site.
Faster Start to Your Build
Robotic printing can significantly reduce set-out time, completing layouts up to ten times faster than manual marking and allowing crews to begin framing sooner.
Reduce Rework & Costly Delays
With consistent, highly accurate set-outs, potential discrepancies can be identified earlier, mitigating mistakes that snowball into wasted labour and expensive fix ups.
Clear Markings for Every Trade
Printed walls, openings and service points make on-site coordination faster and easier for builders, electricians, plumbers and other trades.
Joel From Bayshore Builders
We recently had the opportunity to work with Greg and Precision Layout Solutions on one of our projects. From our initial contact through to the completed, fully marked-out slab, the process was smooth and thorough. It’s exciting to see the future of construction layout technology and to have this level of service readily available. We were able to input all the plan information required and now have all set-out lines and details clearly marked on the slab for the entire build. The team on site have commented on how this has improved efficiency and reduced the time spent checking set-outs. Even our clients have appreciated that joinery and furniture layouts are marked on the slab, allowing them to better visualise how their spaces will feel. This will now be standard practice for us going forward—having all slabs marked out using HP SitePrint. We wouldn’t go back.
Mike Collins, Home Owner

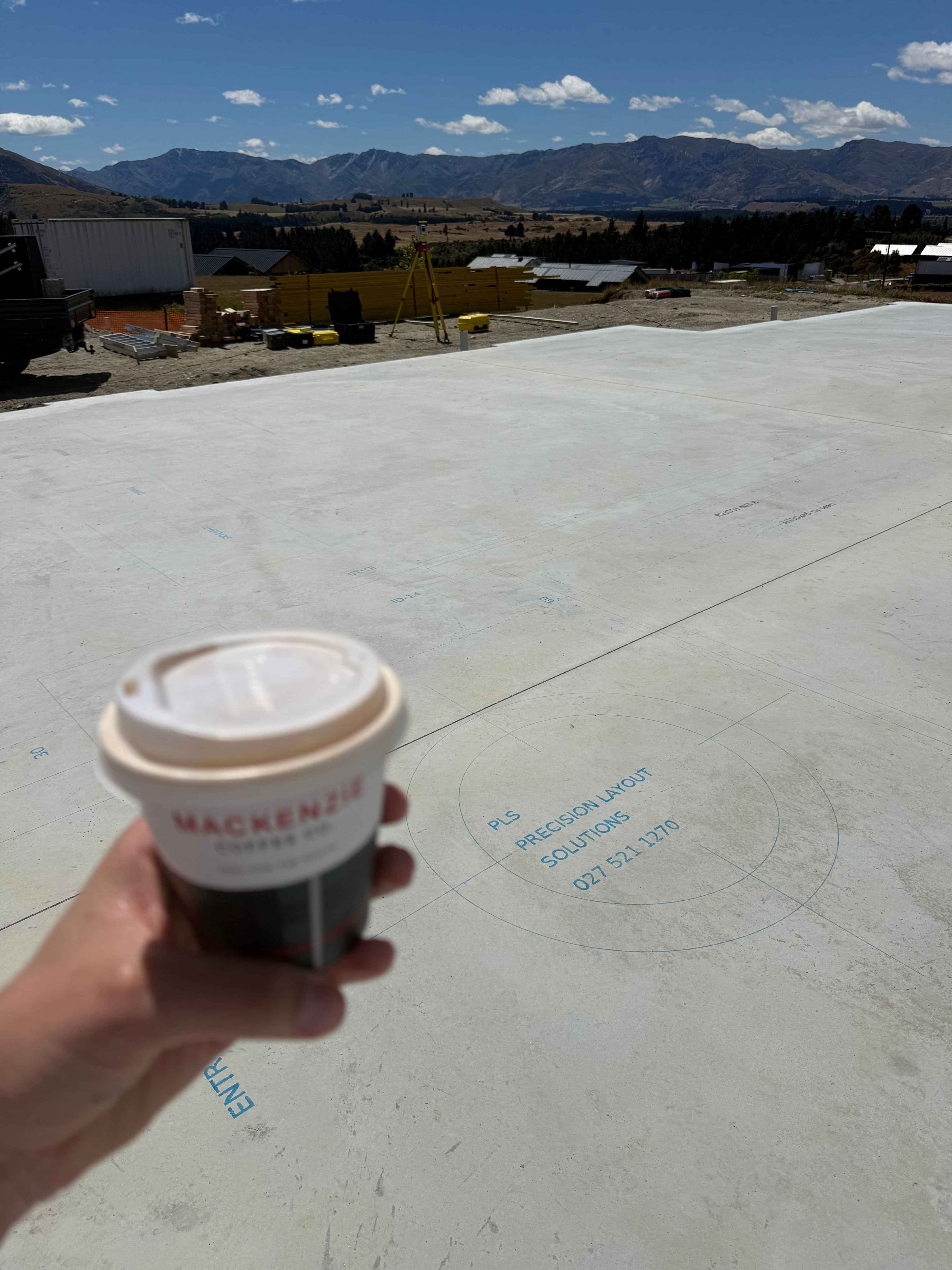

I had Precision Layout Solutions print the layout on our build in Wanaka, and it was seriously impressive. Seeing the full plan marked out on the slab, including joinery, furniture, lighting and electrical, made everything so much easier to visualise and understand.
It gave us a lot of confidence heading into the build, knowing everything was laid out accurately from the start. The demo day was a great touch as well being able to see the process first hand really showed the value of what they offer.
Crampton And Smith
5 Starts - We used Precision Layout Solutions on a recent job and it gave us real confidence, that everything was set out exactly where it needed to be. Having frame numbers marked on the ground saved a lot of time and removed the need to constantly refer back to plans. The printed layout also gave the client an early feel for the space, with kitchen joinery and furniture positions clearly shown. Bracing elements were marked out as well, making identification quick and straightforward on site. Overall, a great system that improved accuracy, efficiency, and coordination. Would definitely use again
How do PLS site layouts work?
Commonly Asked Questions:
What files do I need to provide and how do you prepare them?
Clients send us their DWG and PDF drawings. Using HP’s AutoCAD/Revit plug‑in, we remove any unnecessary layers and identify which lines, arcs, text and control points need printing and mark any obstacles. The plug‑in then converts the design into a “robot‑ready” 2D file, which we return for your approval. Once you approve the robot‑ready file, we lock in a print date.
How accurate and fast is site printing?

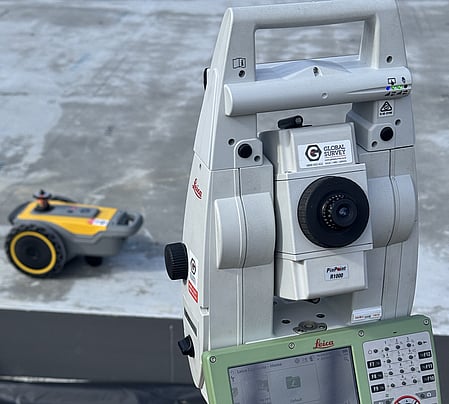

Because the robot is guided by a Robotic Total Station, you get the same accuracy as you would with a conventional RTS layout - about 1mm. HP SitePrint can print up to 340m2 per hour. These speeds depend on line density and complexity, but they’re much faster than manual chalk‑line methods.
Can the robot handle obstacles and different surfaces?

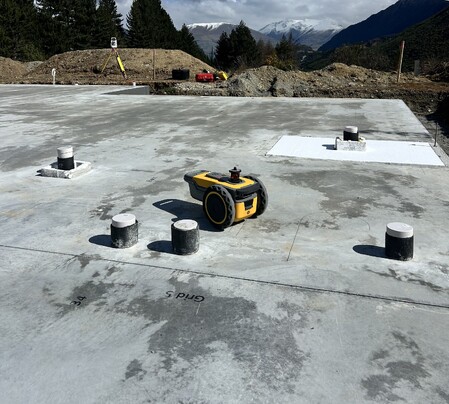

Yes. HP SitePrint’s printhead sits 19 mm above the floor, so it prints on dusty or uneven slabs without needing a broom‑swept surface. It uses dual sensor systems including a depth camera and safety sensors to detect obstacles, cliffs and depressions and either slow down or stop to avoid them. HP offers eight interchangeable inks, enabling printing on tarmac, rough concrete, plywood and formwork; these inks range from permanent to erasable, so we choose the right one for your project.
How many people are needed and how should the site be prepared?
Only one operator is required to monitor the robot during printing. The site conditions can be similar to manual layout; clearing large obstacles improves productivity, but the robot will print over dust, damp patches and small height differences. Each battery runs about four hours, and swapping the two batteries allows a full day of continuous printing.
How does pricing work and what do I receive after the job?
The pricing is done on a job by job basis. Once we have received the DWG files we take our time looking through them and establishing the time it will take to make robot ready (as every file is configured differently). Then with the help from the HP simulator we establish the time it will take to print and price accordingly from there. After printing, we provide a print report and the final files for your records, giving you a detailed record of what was printed and when.
Where has robotic layout machine technology been used in NZ?
Our robotic layout machine is used on residential, commercial and large-scale construction projects across Canterbury and throughout New Zealand. HP SitePrint Case Studies provide real-world examples of the technology in action.
We understand site printing is an investment, and you might have questions about HP SitePrint cost for your project. Simply get in touch for a no-obligation phone call to discuss how PLS can help.
